Inlet profile generator#

This tool is a simple Python script that generates a polynomial function to use as inlet boundary condition for the flow.

The output of the script is a polynomial function that can be used in the Function expression parameter of a inlet boundary condition for the velocity.

It can be found in the /contrib/utilities/inlet_profile_generator folder of the Lethe repository.

To run the script you just need to have SymPy installed in your Python environment.

The script has the following arguments:

  • --dimension or -d: Dimensions of the profile. This variable stands for the dimensions of the boundary. For instance, in a 2D simulation, your boundary face is 1D, so this argument should be 1. Supported dimensions are 1 and 2. Default is 2.

  • --polynomial-degree or -pd: Degree of the polynomial to be generated. Default is 2. To prevent negative flow velocities, we always use even degrees.

  • --shape or -s: Shape of the inlet. Supported shapes are rectangle and circle. Default is rectangle.

  • --flow-rate or -fr: Volumetric flow rate to be imposed at the inlet. Default is 1.

  • --center or -c: Coordinates of the center of the inlet. Default is 0. 0..

  • --length or -l: Length associated to the inlet shape. If the shape is a rectangle, use a,b, where a is the length in the x direction and b is the length in the y direction. If the shape is a circle, give the diameter of. Default is 1. 1. for rectangle and 1. for the circle.

  • --number-significant-digits or -n: Number of significant digits to be used in the output polynomial. Default is 5.

  • plot or -p: Used for plotting the generated profile obtained by the script. If True plots of velocity as a function of x at center y` and velocity as a function of y` at center x are shown. Default is False.

Running the script is as simple as:

python3 inlet_profile_generator.py --polynomial-degree 4 --shape circle --flow-rate 2 --center 0. 0. --length 1. --plot

The output of this command is:

=== Inlet velocity profile u(x,y) (SymPy expression) ===

(-192.0*x^4 - 384.0*x^2*y^2 - 192.0*y^4 + 12.0)/pi

Plotting centerline u(r) with SymPy...

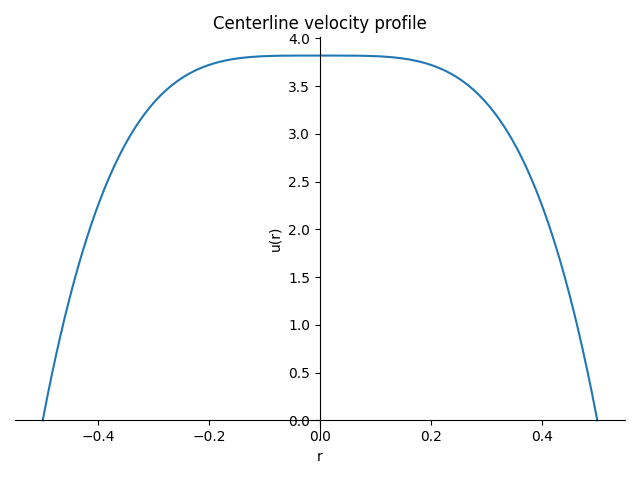

With the following plot:

Inlet profile generator plot
